Deluxe Elastic Mattress

NOW AVAILABLE!



 An original take on the classic 1970s & green 1980's 18-volt  EHX Deluxe Electric Mistress flanger.

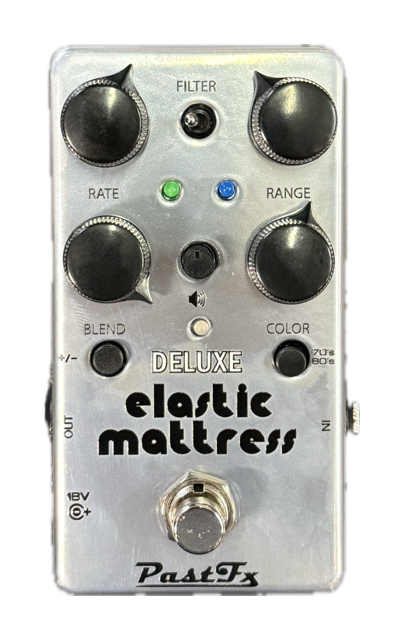

Deluxe Elastic Enclosure

FREE SHIPPING WITH ALL PEDALS TO MOST COUNTRIES! *

Debit or Credit Card

Payment Available

ScreenHunter 03 Apr 02 1827



Elastic Mattress logo

What Is It?

The PastFx Deluxe Elastic Mattress is our original spin on the  Deluxe Electric Mistress pedal made by Electro-Harmonix in the late 1970s & 1980's

Specs:

    •  Matsushita / Panasonic MN3007 Bucket Brigade Device
    • External controls for Rate, Range, Color, Blend/Mix, level control
    • New +/- Negative feedback pushbutton option (button pressed = negative feedback)
    • New 70's / 80's pushbutton switch allowing different tonal voicing options (Button pressed = 80's mode)

Between the Deluxe Electric Mistress introduction in the 70's and before EHX closed its doors in the 1980's, the circuit went through several revisions, this button changes between the two different audio filtering designs used in the circuit, the early darker circuit and the lighter filtering introduced in the classic 'green' deluxe mistress which more closely emulated the sound of the classic 9V electric mistress.

    • Internal high / low impedance switch
    • Bonus internal delay time mod slide switch.
    • Visual Led indicators: Filter Matrix mode (blue LED, right toggle) and Normal (green LED, left toggle)
    • True bypass operation
    • 18V DC centre negative power supply requirements (160 mA current draw); no battery option available
    • Dimensions: 112 x 60 x 31mm / 4.4" x 2.36" x 1.22" (enclosure only)

AS WE ARE ALWAYS LOOKING FOR WAYS TO IMPROVE OUR PRODUCTS, PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
